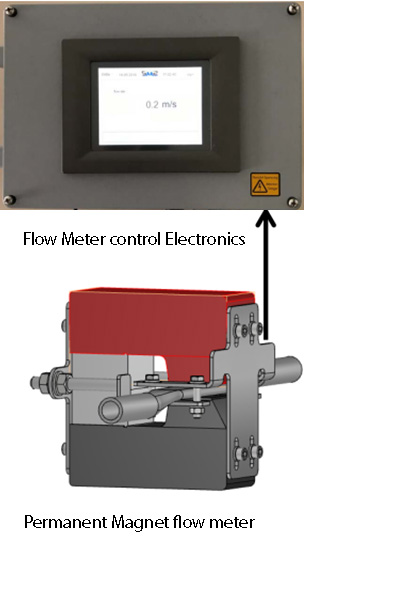

- Permanent magnet flow meters
- Electromagnetic Flow meters
- Cryogenic Solutions
- MLI (Multi Layer Insulation Blankets)
- MLI Tapes
- Polyimide Tapes (Width 1”, Width 0.5”)
- Indium Sheets
- Indium Wire
- Cryogenic Instrumentation
- Feed Through
- High Purity Metals and alloys
- Tungeston
- Zirconium
- Halfnium
- Lutetium
- Palladium
Engineering Soultions
Development and fabrication of small setups using state of the art technology such as EDM wire cuts and VMC machines
Permanent Magnets:
NdFeB magnets
SmCo magnets
Electromagnetic Devices

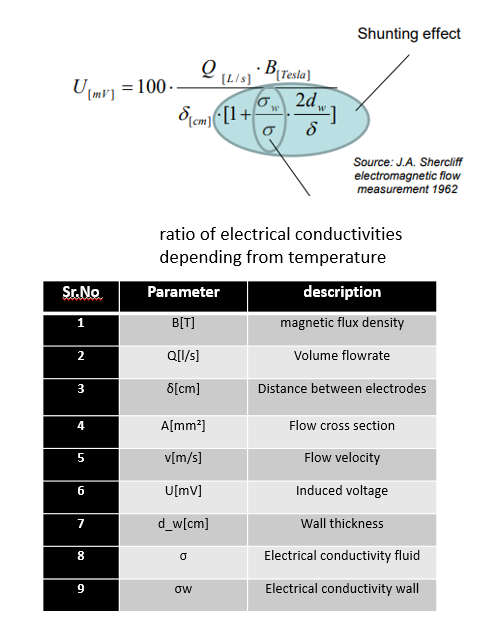

Electromagnetic Flow meters family
- EMD cd
- EMD fw
- EMD tr
Devices for liquid metal application
- Heat exchanger, dynamic heatexchanger
- Cold traps
- Calorimeter
Complete turnkey pilot plants with control equipment
Types of permanent magnetic pumps
Disc Type pump
- 180° acceleration angle
- pressure head up to 5 bar
- 270° acceleration angle W –type
pressure head up to 11 bar Cylindrical pump:
- n x 360° acceleration angle
- pressure head up to 15 bar / 360°
Properties of Permanent magnetic pumps
Advantage
- Simple design
- No shaft seals
- Low wear
- Wide PQ characteristics
- Higher efficiency compared to electromagnetic pumps
- robustes Kavitationsverhalten
Disadvantages:
- Low efficiency compared to mechanical pumps
- Big dimensions
- Risk of freezing at low flow
Low efficiency with high delivery pressure and low flow

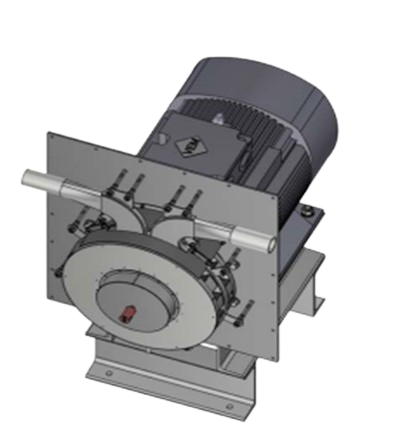

PMP disc type
270°
180°

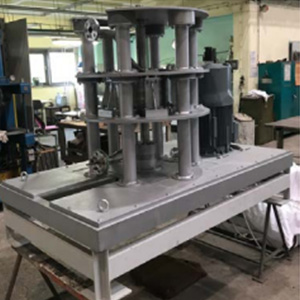

PMP Cylindrical type

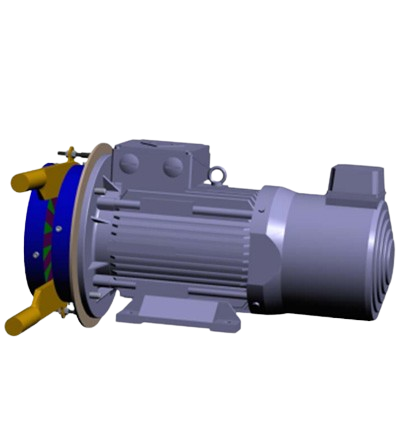

Permanent Magnet Pump
Permanent Magnet Pump
EMD cd
180°
270°
PMP Cylindrical type
Permanent Magnet Pump

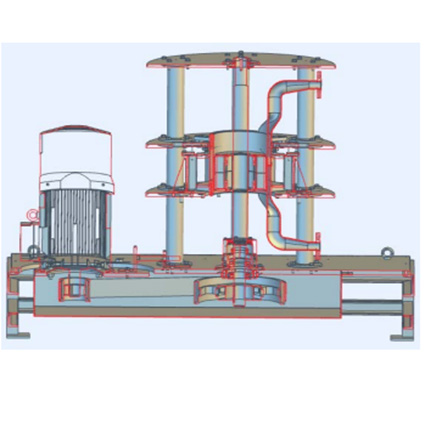

3D Model of Assembled pump
PMP Cylindrical type

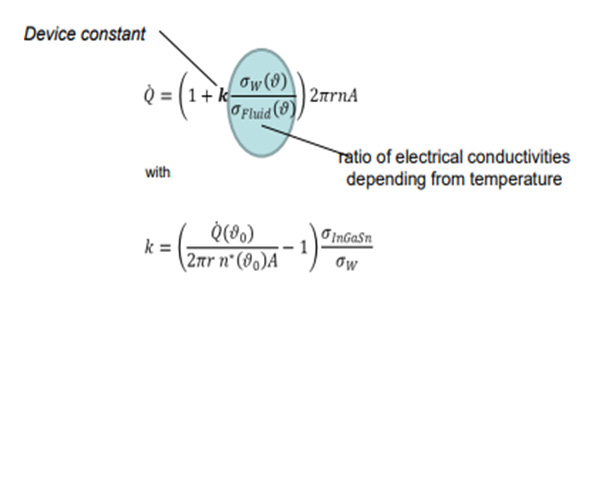

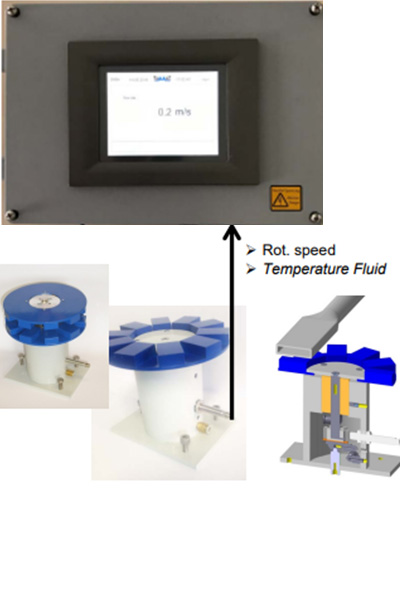

EM flowmeter fly wheel based

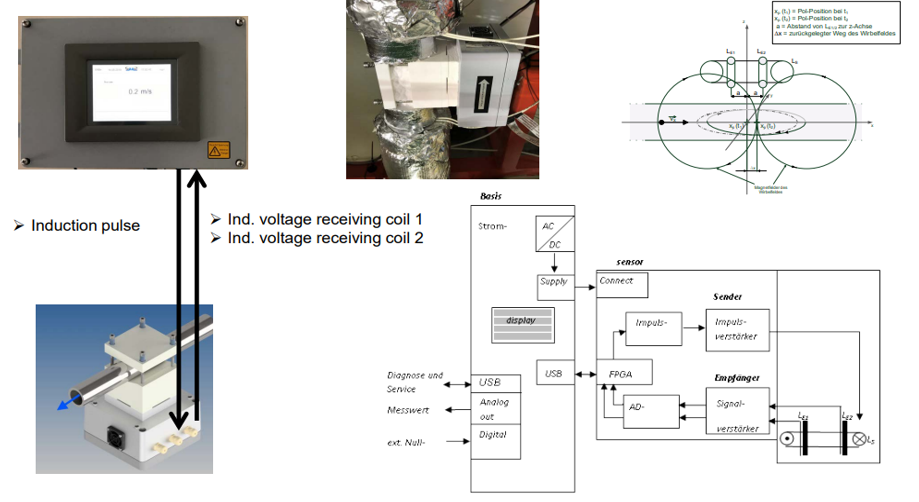

EMD transient (tr)
